DiNi Data Transfer via USB thumb drive

Required items:

• Dini
• USB memory stick

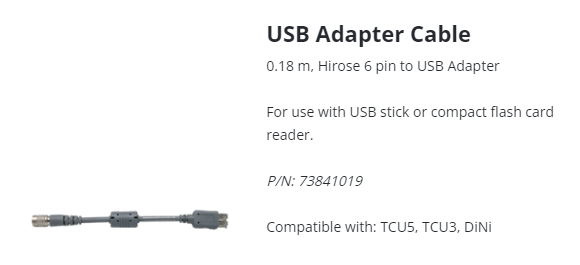

• USB Adapter Cable


1. Turn on the Dini
2. Plug the cable into the Dini

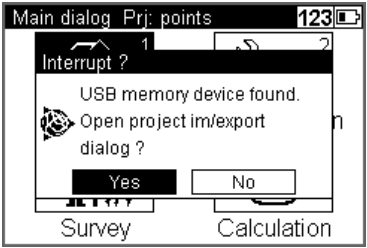

3. Connect the USB Memory Stick via cable to the Trimble Dini. The instrument offers the possibility to open the menu for Data import and export directly.

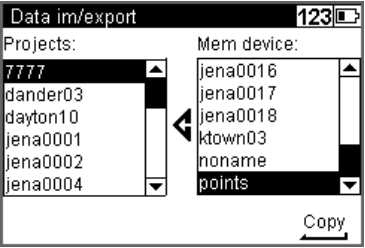

4. The instrument allows copying files in both directions. Once you have select the job you require press enter to copy the job over to the USB memory Stick.
