The Trimble Web User Interface is a powerful browser based configuration tool on selected Trimble GNSS receivers.
WiFi Connection
To access the WebUI turn on the Trimble GNSS Receiver and connect to the receivers WiFi in the same method you would select any Wifi network. It will appear in the list of available networks as: Trimble GNSS XXXX (where the XXXX is the last 4 digits of the receivers serial number)
There's a chance the receiver will ask you for a WiFi password. The default password is: abcdeabcde
If you can’t see the receiver on the Wi-Fi network list open Trimble Access and go to:

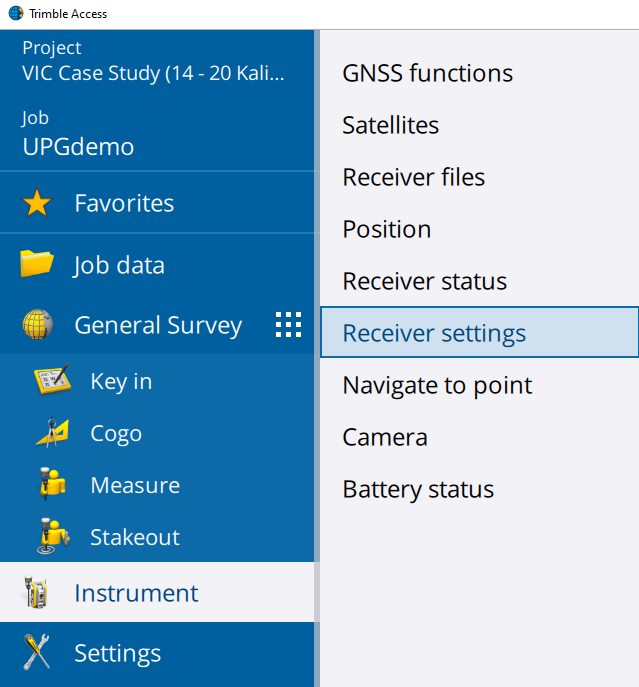

- Instrument > Receiver settings

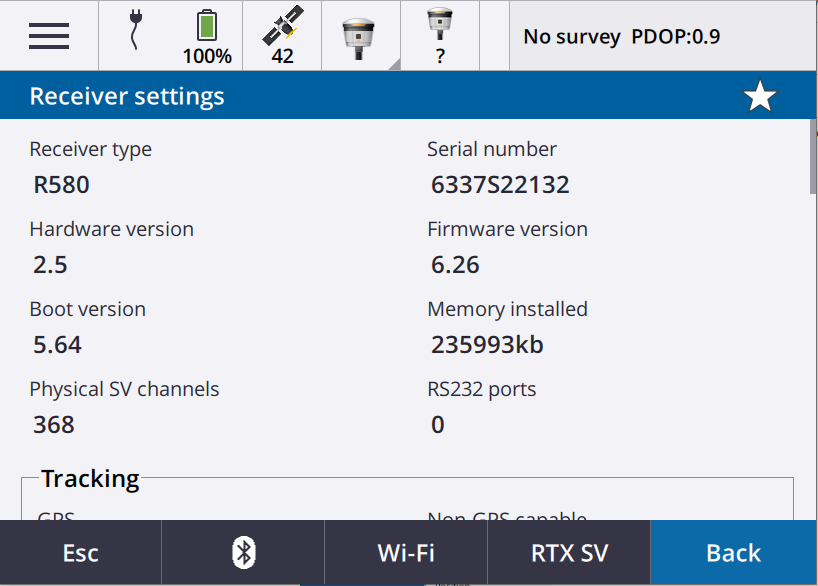

- Wi-Fi softkey

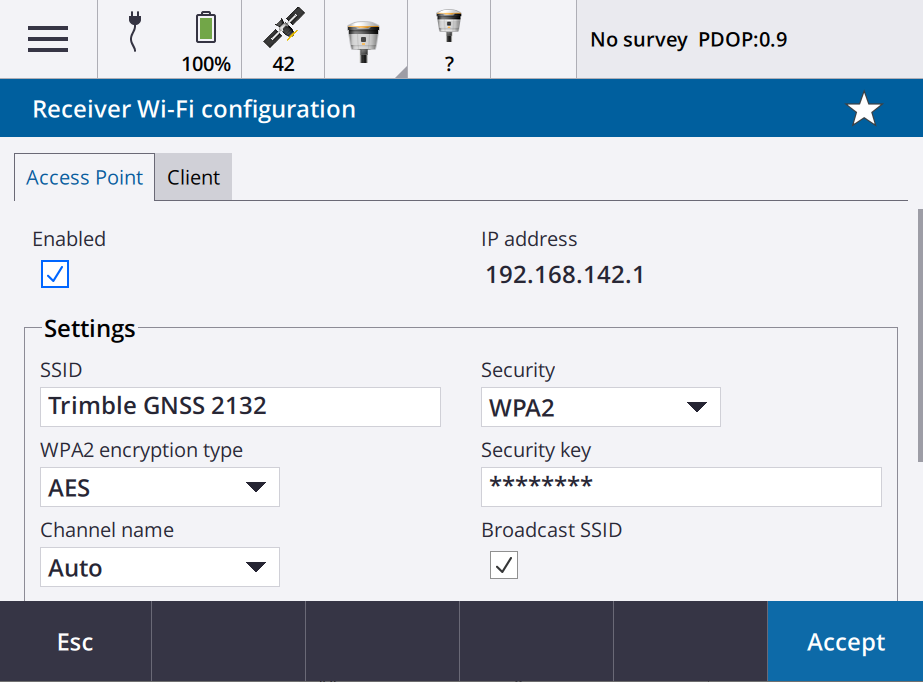

- Enable Access Point then hit accept.
- Restart your receiver.
Once connected, open up a web browser and type:
192.168.142.1

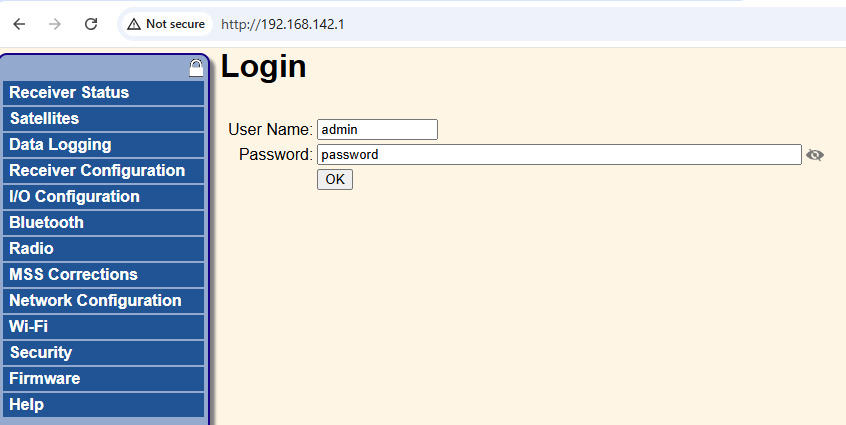

This will bring you to the initial login screen. This default credentials are:
Username: admin
Password: password
If UPG QA'd your receiver then the login credentials will be:
Username: admin
Password: Model_SerialNumber (example: R12i_6425R7548)
Cabled Connection

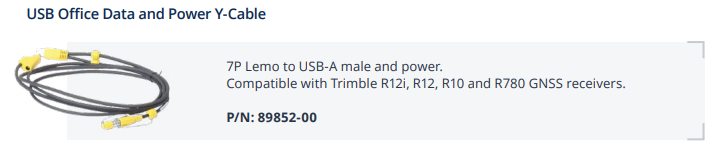

You can access the WebUi with a yellow Y cable.
To access the WebUI turn on the Trimble GNSS Receiver and plug the circular 7P Lemo into the yellow port on the underside of the receiver and the usb plug into your PC.
Open up a web browser and type:
192.168.144.1

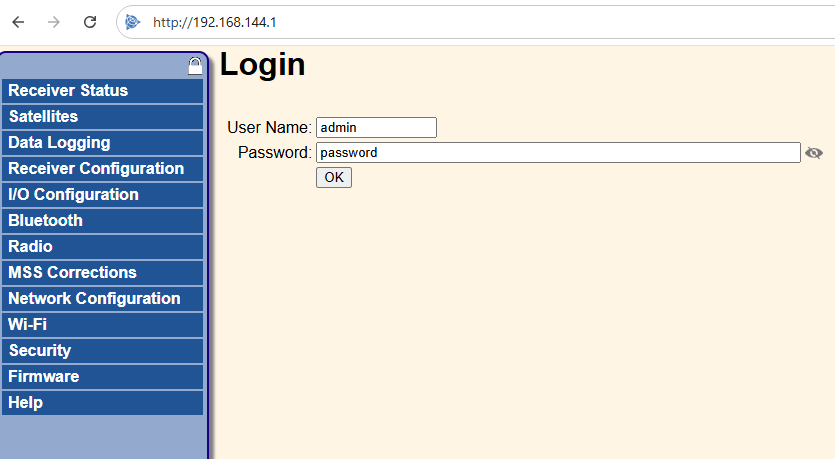

This will bring you to the initial login screen. This default credentials are:
Username: admin
Password: password
If UPG QA'd your receiver then the login credentials will be:
Username: admin
Password: Model_SerialNumber (example: R12i_6425R7548)
MORE INFORMATION
For additional information or assistance, contact 1800 800 874 or email support@upgsolutions.com
